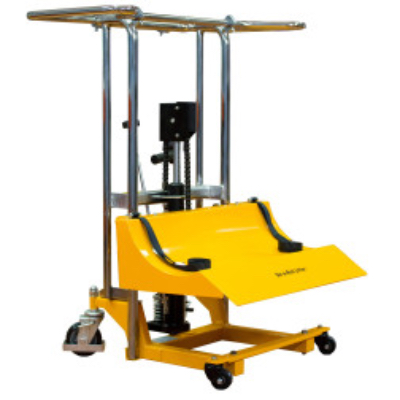

Designed specifically for sign makers and other businesses with the need to handle wide or heavy media rolls. It enables users to quickly and effortlessly lift media as heavy as 660 lbs (300 kg) and as wide as 16 feet 5 inches (5 m), with diameters as great as 15.75 inches (40 cm). The ergonomic pull bar allows users to maneuver around tight corners and through narrow passages.
- FEATURES:
- Extended nylon safety straps provide leverage to help guide the roll into the trough and ensure materials are secured for transport.
- Concave trough design of the media tray stabilizes rolls for transport.
- Foot pump allows for smooth, effortless lifting within minutes.
- 360° heavy-duty rotating (and locking) casters enable maneuvering through standard doors and narrow passages.
- Solid steel handle extension provides additional control for the user to maneuver materials in tight spots.
- DETAILS:
- Roll Weight Capacity 660 lbs (300 kg)
- Lift Height 33.5″ H (85 cm)
- Max. Roll Width 8′ 2″ (250 cm)
- Max. Roll Diameter 15.75″ (40 cm)
- Overall Media Lifter Dimensions (W x D x H) 31.5″ x 31.5″ x 47″ (80 x 80 x 119.4 cm)
- Media Lifter Weight 177 lbs (80 kg)
- Bottom Fork Clearance 4″ (10 cm)
